1X1 Vertical RJ45 Single Port Cat6 Rj45 Modular Plug Jack / Cat5e RJ45 Connectors

Product Categories
ZHEJIANG SAK ELECTRONICS CO.,LTD
Contact Now

1X1 Vertical RJ45 Single Port Cat6 Rj45 Modular Plug Jack / Cat5e RJ45 Connectors

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : Guangdong, China (Mainland)

MOQ : 500 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5,000,000pcs/Month

Delivery Time : 24-30 work days

Packaging Details : 60pieces/tray

LEDS : NO

EMI finger : NO

Usage : KRJ-180RNL

Shieded : YES

Length : 18.75mm

Number of position : 8

Contact Now

Vertical Filter Socke RJ45 Single Port Integrated For Industrial

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Vertical without LED with top entry
  • Single port 1X1 Tab-Up 180 degree RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:18.75mm
  • LEDS:NO
  • EMI finger:NO
  • Usage:KRJ-180RNL

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,

IP phone, internet set-top box, internet camera, net bridge, computer, telecommunication, MODEM, HomePNA,

DSL／ADSL and so on.

For example:

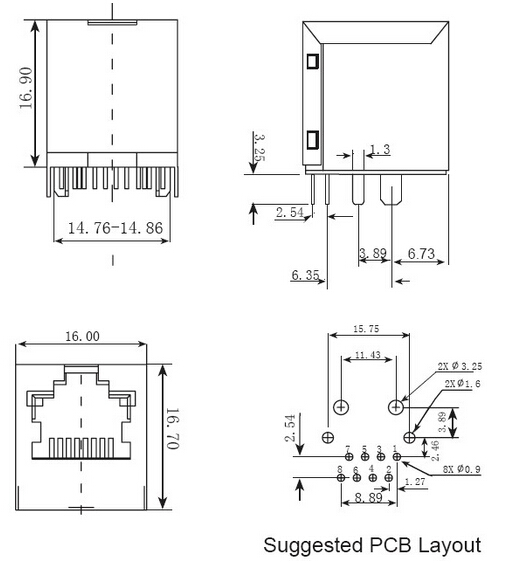

Mechanical Dimensions:(Unit:mm)

1X1 Vertical RJ45 Single Port Cat6 Rj45 Modular Plug Jack / Cat5e RJ45 Connectors
