Shielded RJ45 USB Connector 8P8C Ethernet Female Jack with Magnetic
Specifications
| 1. Characteristics: | 1)RJ45 Connector with integrated transformer/common mode choke |
| | 2)Available in SMD, THT and THT with USB |
| | 3)350µH min. OCL with 8mA bias |
| | 4)Complies with IEEE 802.3 |
| | 5)Extended temperature range -40°C to +85°C available |
| | 6)PoE/ PoE+ |
| | |
| 2. Operation/Application: | 1)xDSL Modems |
| | 2)Embedded PC |
| | 3)LAN Applications |
| | 4)Hub, Router, Switches |
| | |
| 3. Electrical Characteristics: | |
| 1) Shielded | With/Without |
Material:
1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selectine Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option
Feature:
1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed For Network Interface Card Application.
3. Designed To Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better
Electrical:
Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax
Mechanical:
1. Durability:750 CYCLES MIN
2. PCB Rentention pre-solder:1LB MIN
Environmental:
1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Opration Temperature 0°C~+70°C
Lead-free process,compliant RoHS

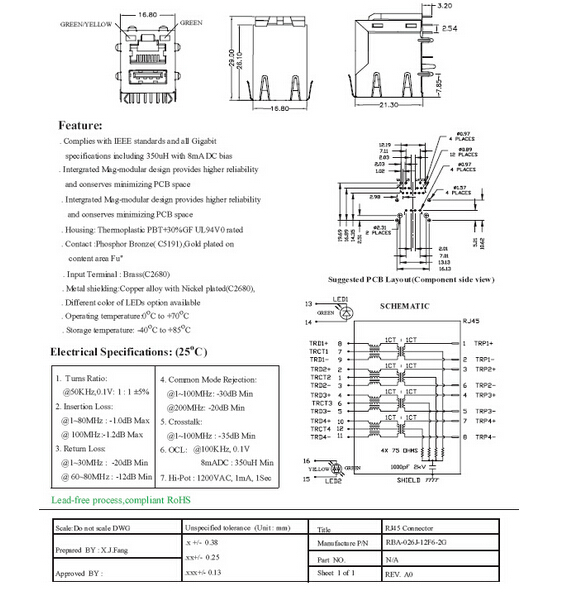

Drawing
Shielded RJ45 USB Connector 8P8C Ethernet Female Jack with Magnetic
Why Choose XINGGE
Quality :
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .
| Manufactured under strict controls | RoHS compliance |
| ISO 9001:2008 | OEM for PULSE |
| UL Certification | Active Environmental policy |
| Reach Cetitifaction | Every module tested 3times (not just batch tested) |
Unit Price
Charge only 35% ~ 60% of Pulse , Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
XINGGE have more than 30 units automation equipments to product as possible
XINGGE consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent
Service
XINGGE Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if
customers are not satisfied)
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.
| Case.1 | Stock | 25% |
| Case.2 | 3-4 Weeks | 70% |
| Case.3 | 5-6 Weeks | 5% |
Design &Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays
